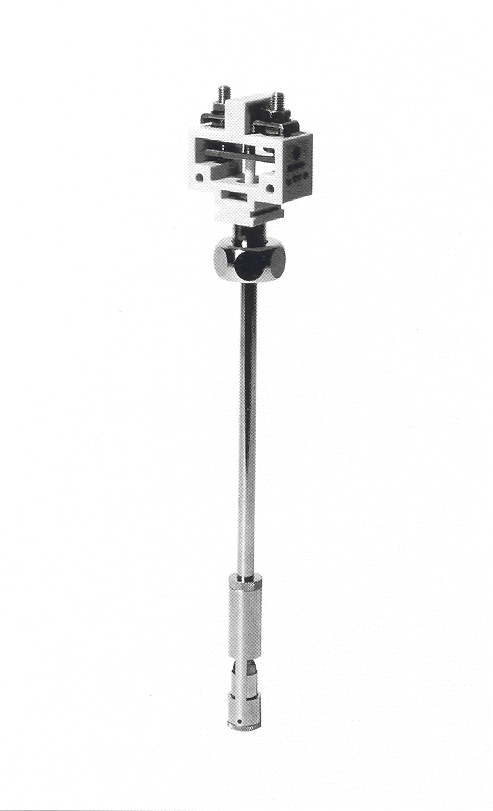

ESTI Excess Temperature Protector EKT 26

single-pole circuit-breaker in a ceramic housing, 25 A / 380 V ~









Please, contact us for sending you an dimensions draw of the switch.



This switch is used similar to the EKT 25.



For the purpose of being as close as possible to the heat source the safety switch is equipped with a probe.



On request the EKT 26 can be delivered with a 1/2" cap.



Highest temperature above 300 degrees C.



Length of the probe is normally 180 mm, diameter 12 mm. .



On demand it can be delivered with a casing (surcharge).



Because of the casing the operating temperature of the switch is limited to 120 degrees C.
